Horizontal Machines

Horizontal Machines

Horizontal Flat

Contact Sales
sq in mm²
0.00124 0.8
0.0124 8
Mozart Flat8
CuCopper 0.80 – 8.00 mm²
mag-f8

Production Data

Cross section
0.80 – 8.00 mm²
Nominal width
1.00 – 6.00 mm
Nominal thickness
0.80 – 2.00 mm
Speed range
0 – 70.00 m/min
Available configurations
2 Lines, 4 Lines

Horizontal Round

Contact Sales
awg mm
53 0.0018
38 0.1
32 0.2
26 0.4
20 0.8
16.5 1.2
14 1.6
12 2
10 2.5
HS 0
CuCopper 0.018 – 0.04 mm / awg 53 – 46
HS 1
CuCopper 0.03 – 0.06 mm / awg 48 – 42.5
HDS 1
CuCopper 0.05 – 0.12 mm / awg 44 – 36.5

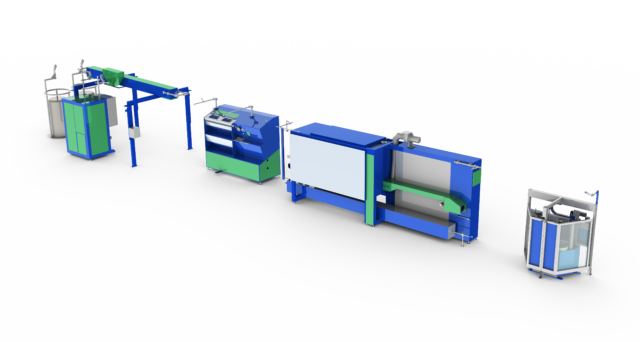

HESF 1
CuCopper 0.05 – 0.12 mm / awg 44.0 – 36.5
mag-hesf1

Production Data (Cu)

Diameter range
0.05 – 0.12 mm / awg 44.0 – 36.5
Max. production speed
1500 m/min
Max. inlet diameter
0.13 - 0.32 mm
Available configurations
1 Line

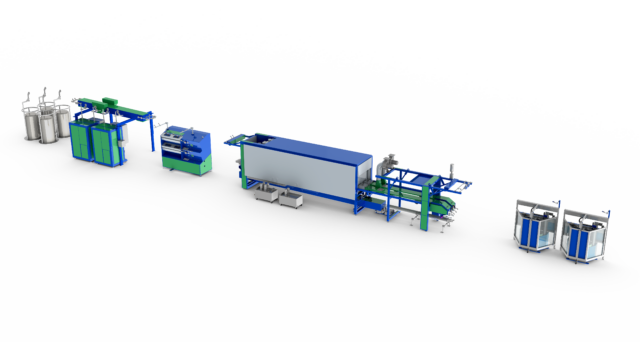

HESF 2
CuCopper 0.08 – 0.15 mm / awg 40.0 – 34.5
mag-hesf2

Production Data (Cu)

Diameter range
0.08 – 0.15 mm / awg 40.0 – 34.5
Max. production speed
1500 m/min
Max. inlet diameter
0.50 mm
Available configurations
2 Lines, 4 Lines

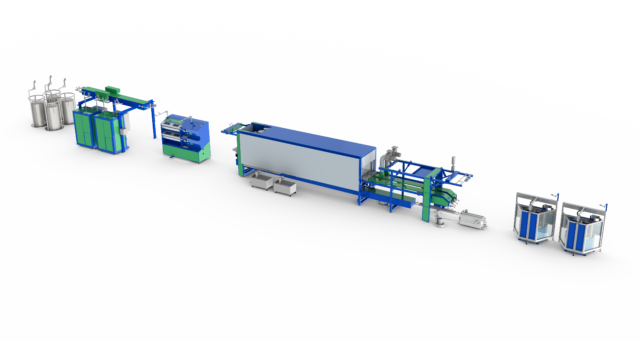

HESF 3
CuCopper 0.10 – 0.25 mm / awg 38.0 – 30.0
mag-hesf3

Production Data (Cu)

Diameter range
0.10 – 0.25 mm / awg 38.0 – 30.0
Max. production speed
1500 m/min
Max. inlet diameter
1.40 mm
Available configurations
2 Lines, 4 Lines

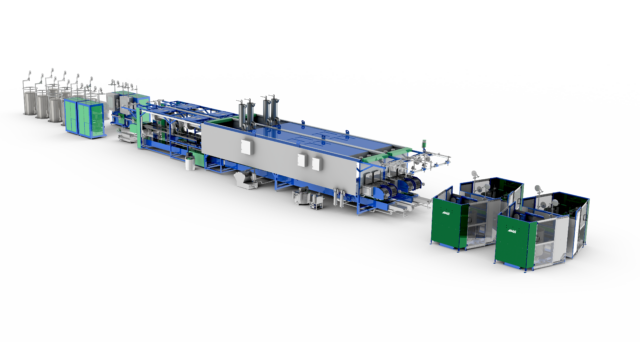

Mozart Zero H3
CuCopper 0.150 – 0.350 mm / awg 34.5 – 27.0
AlAluminum 0.300 – 0.600 mm / awg 28.5 – 22.5
mag-mz-h3

Production Data (Cu)

Diameter range
0.150 – 0.350 mm / awg 34.5 – 27.0
Max. production speed
1400 m/min
Max. inlet diameter
1.12 mm
Available configurations
2 Lines, 4 Lines, 6 Lines

Production Data (Al)

Diameter range
0.300 – 0.600 mm / awg 28.5 – 22.5
Max. production speed
1400 m/min
Max. inlet diameter
1.80 mm
Available configurations
2 Lines, 4 Lines, 6 Lines
Mozart Zero H4
CuCopper 0.200 – 0.500 mm / awg 32.0 – 24.0
AlAluminum 0.335 – 0.850 mm / awg 27.5 – 19.5
mag-mz-h3

Production Data (Cu)

Diameter range
0.200 – 0.500 mm / awg 32.0 – 24.0
Max. production speed
1250 m/min
Max. inlet diameter
1.60 mm
Available configurations
2 Lines, 4 Lines, 6 Lines

Production Data (Al)

Diameter range
0.335 – 0.850 mm / awg 27.5 – 19.5
Max. production speed
1250 m/min
Max. inlet diameter
2.40 mm
Available configurations
2 Lines, 4 Lines, 6 Lines
Mozart Zero H5
CuCopper 0.300 – 0.800 mm / awg 28.5 – 20.0
AlAluminum 0.500 – 1.320 mm / awg 24.0 – 15.5
mag-mz-h3

Production Data (Cu)

Diameter range
0.300 – 0.800 mm / awg 28.5 – 20.0
Max. production speed
850 m/min
Max. inlet diameter
2.40 mm
Available configurations
2 Lines, 4 Lines, 6 Lines

Production Data (Al)

Diameter range
0.500 – 1.320 mm / awg 24.0 – 15.5
Max. production speed
850 m/min
Max. inlet diameter
2.40 mm
Available configurations
2 Lines, 4 Lines, 6 Lines
Mozart Zero H6
CuCopper 0.500 – 1.200 mm / awg 24.0 – 16.5
AlAluminum 0.850 – 2.000 mm / awg 19.5 – 12.0
mag-mz-h3

Production Data (Cu)

Diameter range
0.500 – 1.200 mm / awg 24.0 – 16.5
Max. production speed
450 m/min
Max. inlet diameter
2.40 mm
Available configurations
2 Lines, 4 Lines, 6 Lines

Production Data (Al)

Diameter range
0.850 – 2.000 mm / awg 19.5 – 12.0
Max. production speed
450 m/min
Max. inlet diameter
3.35 mm
Available configurations
2 Lines, 4 Lines, 6 Lines
Mozart Zero H7
CuCopper 1.000 – 1.600 mm / awg 18.0 – 14.0
AlAluminum 1.500 – 2.000 mm / awg 14.5 – 12.0
mag-mz-h3

Production Data (Cu)

Diameter range
1.000 – 1.600 mm / awg 18.0 – 14.0
Max. production speed
200 m/min
Max. inlet diameter
2.80 mm
Available configurations
2 Lines, 4 Lines

Production Data (Al)

Diameter range
1.500 – 2.000 mm / awg 14.5 – 12.0
Max. production speed
200 m/min
Max. Max. inlet diameter
2.80 mm
Available configurations
2 Lines, 4 Lines

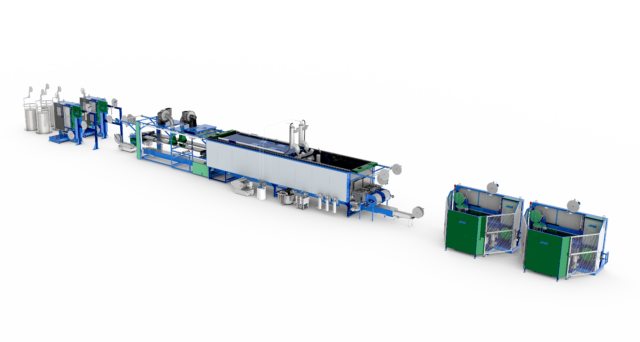

Mozart Zero H8
CuCopper 1.500 – 2.500 mm / awg 14.5 – 10.0
mag-mz-h8

Production Data (Cu)

Diameter range
1.500 – 2.500 mm / awg 14.5 – 10.0
Max. production speed
150 m/min
Max. inlet diameter
5.50 mm
Available configurations
2 Lines, 4 Lines
No machines found.

Our machines for the horizontal production of enameled copper and aluminum wire are best-in-class. Thanks to the innovative Mozart Zero technology by MAG, the coating process for your wires with small to medium diameters will be extremely efficient – not only when it comes to speed but also regarding energy consumption.

MAG cares about the environment. To protect nature and the world we live in, we developed our unique Mozart Zero technology that reduces energy consumption for certain processes to zero. Through clever management of the energy used throughout the coating process, we’ve managed to seriously increase energy efficiency in our machines. This doesn’t just reduce cost for you; it’s also great for the environment.

On top of that, our Mozart Zero machines are the fastest on the market and deliver impeccable quality. Talk about a win-win situation!
