Vertical Machines

Vertical Machines

Vertical Flat

Contact Sales
sq in mm²
0.00217 1.4
0.031 20
0.124 80
Mozart V8 Single
CuCopper 1.40 – 20.00 mm²
mag-mz-v8-sd

Production Data (Cu PVA)

Cross section
1.40 – 20.00 mm²
Nominal width
1.40 – 10.00 mm
Nominal thickness
0.80 – 3.55 mm
Max. production speed
40 m/min
Available configurations
1 Line, 2 Lines
Mozart V8 Dual
CuCopper 1.40 – 20.00 mm²
mag-mz-v8-sd

Production Data (Cu PVA)

Cross section
1.40 – 20.00 mm²
Nominal width
1.40 – 10.00 mm
Nominal thickness
0.80 – 3.55 mm
Max. production speed
40 m/min
Available configurations
1 Line, 2 Lines, 4 Lines

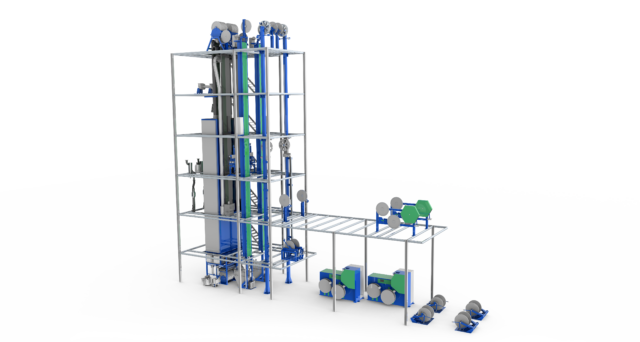

Mozart V9 Single
CuCopper 3.00 – 80.00 mm²
mag-mz-v9-sd

Production Data (Cu)

Cross section
3.00 – 80.00 mm²
Nominal width
2.00 – 20.00 mm
Nominal thickness
0.90 – 5.60 mm
Max. production speed
40 m/min
Available configurations
1 Line, 2 Lines, 4 Lines
Mozart V9 Dual
CuCopper 3.00 – 80.00 mm²
mag-mz-v9-sd

Production Data (Cu)

Cross section
3.00 – 80.00 mm²
Nominal width
2.00 – 20.00 mm
Nominal thickness
0.90 – 5.60 mm
Max. production speed
40 m/min
Available configurations
1 Line, 2 Lines, 4 Lines

Vertical Round

Contact Sales
awg mm
26 0.4
18 1
12 2
8,5 3
6 4
4 5
3 6
Mozart Zero V6
CuCopper 0.71 – 2.24 mm / awg 21 – 11
AlAluminum 0.95 – 2.80 mm / awg 18.5 – 9
mag-mz-v7

Production Data (Cu)

Diameter range
0.71 – 2.24 mm / awg 21 – 11
Max. production speed
250 m/min
Max. inlet diameter
2.800 mm
Available configurations
2 Lines, 4 Lines

Production Data (Al)

Diameter range
0.95 – 2.80 mm / awg 18.5 – 9
Max. production speed
250 m/min
Max. inlet diameter
3.800 mm
Available configurations
2 Lines, 4 Lines

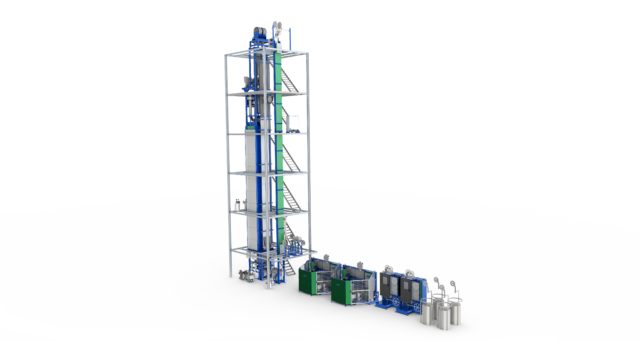

Mozart Zero V7
CuCopper 1.000 – 4.000 mm / awg 18 – 6
AlAluminum 1.700 – 5.000 mm / awg 13.5 – 4
mag-mz-v7

Production Data (Cu)

Diameter range
1.000 – 4.000 mm / awg 18 – 6
Max. production speed
150 m/min
Max. inlet diameter
5.00 mm
Available configurations
2 Lines, 4 Lines

Production Data (Al)

Diameter range
1.700 – 5.000 mm / awg 13.5 – 4
Max. production speed
150 m/min
Max. inlet diameter
6.00 mm
Available configurations
2 Lines, 4 Lines
No machines found.

These are our machines for the vertical production of enameled copper and aluminum wire with a large diameter. MAG vertical machines use gravity to work as efficiently and precisely as possible and they are the most sustainable machines on the market.

Our vertical enameled wire machines are ideal if you want to coat round wire with a broad range of big diameters and flat wire with big cross-sectional areas. They cleverly use gravity to ensure an extremely even coating of the wire.

If you choose one of our Mozart Zero machines, you’ll also profit from superior energy efficiency: this smart system uses the heat used and produced throughout the coating process in a way that significantly reduces energy consumption, thus not only minimizing costs, but also protecting the environment.
